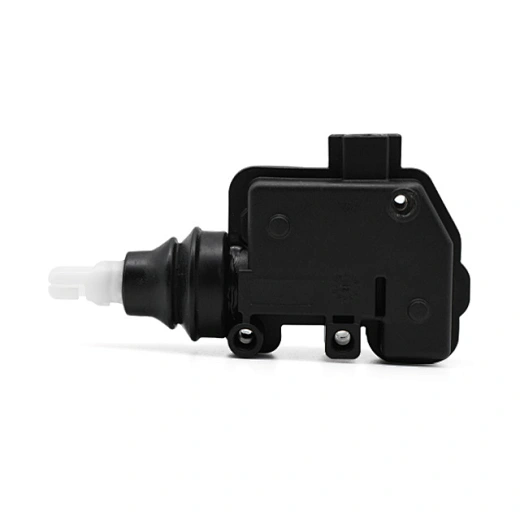

The actuator, as a component part of a machine, is often used in vehicles as door-lock and trunk latches etc.
OA3007 product’s IP67 rating surpasses the previous industry standards of IPX3 rating for vehicle door & trunk. This water-resistant property provides an extra layer of protection in case of water splashes or brief submerges. This patented water resistant design also extends the application of the actuator.

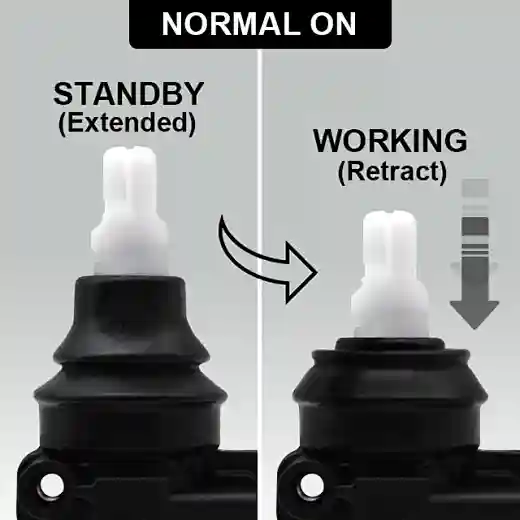

The Normal ON design makes the product easy to use, therefore a one way signal will operate the actuator. The actuator is normally at extended position, when power is on, the actuator will retract back immediately; and then when the power is off, the actuator will return to the extended position at once. The Normal OFF design is also available upon request.
1)Working voltage :DC 9-16V (standard:12V)
2)Working temperature:-40 -+85℃
4)Stall current:≤3.5A (12V, 23℃)
5)output force :
12V (T=23℃) ≥55N;
15V (T=23℃] :≥75N;
6)Lifecycles: 50, 000 times;
7)Manual operation force:≤35N;
8)PTC overload time: 6-36S;
9)IP level: IP67
QTY: 100 PCS/CTN
G.W: 11 KGS
Meas: 49X33X18 CM
