Overview

MATA 7SE-- Promata TPMS for truck with B double trailers is designed for heavy-duty trucks, B-doubles, and road trains. This advanced truck and trailer TPMS monitor up to 6 trailers, supporting real-time tyre pressure monitoring for 2–110 wheels across multiple truck and trailer combinations. With automatic trailer recognition, the system can automatically recognize different trailers when connected, providing convenient and reliable tyre pressure monitoring for complex transport operations. USB data output is also available for data integration and management.

Why Choose Mata7SE?

• One system suitable for all types of vehicles in the fleet.
• Saves time, easy to re-arrange or replace sensors.
• Clear and large display, easy on the eyes.
• Smooth and efficient connection, saves time.
• Truck fleets can manage their fleets all in one place.
• No distance limit, reliable signal.

• Automatic trailer hook-drop recognition.
• Can monitor prime mover towing up to 6 trailers (up to a total of 110 tires).
• Multiple view options (front axle, truck, or all tire view).
• Can integrate with tracking system via CAN J1939, RS232 or RS485.
• FreshData technology.
• Visual and audible warning for high / low pressure, leakage, high temperature.
• Easy to add or delete sensor.
• external sensors monitor tire pressure / temperature 24/7.
• Pressure range: 0~203 Psi / 0~14 Bar.

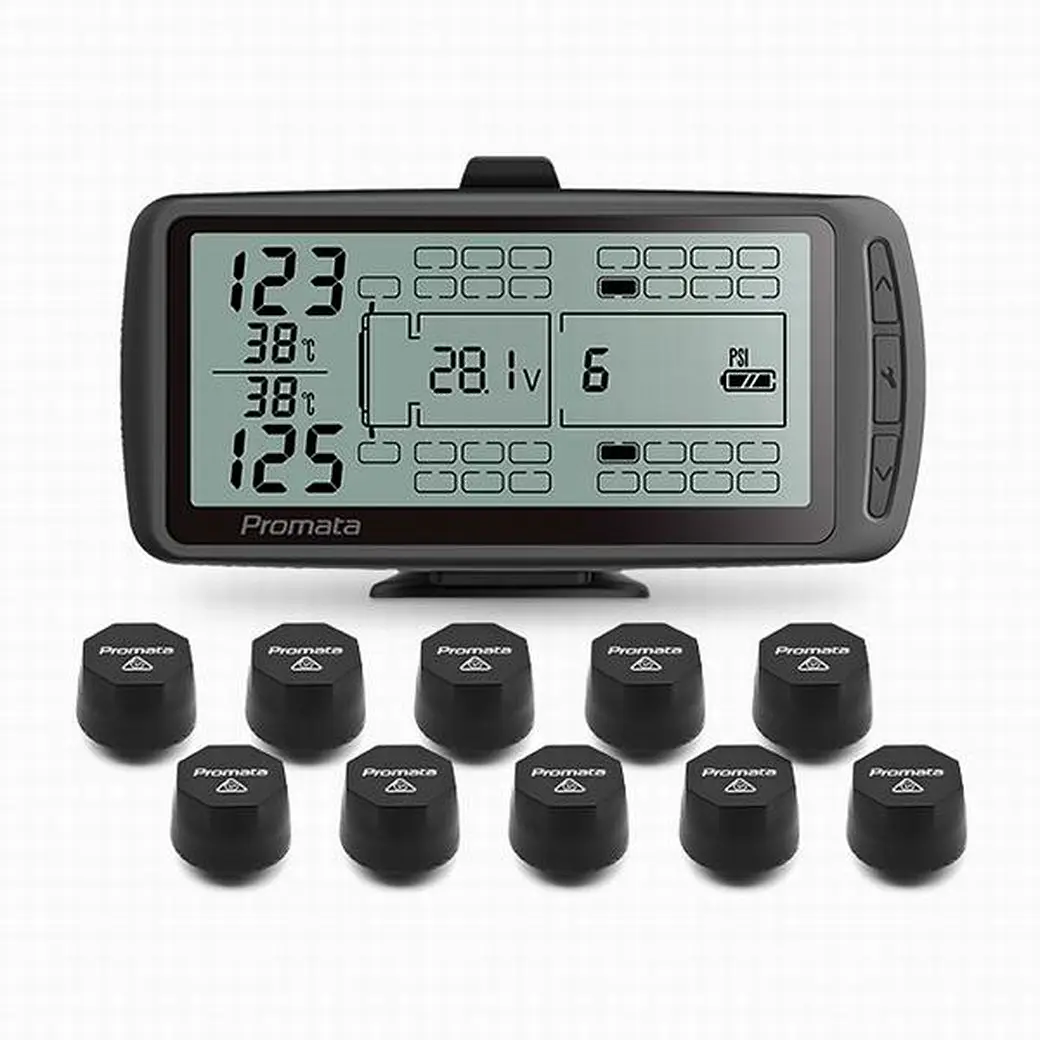

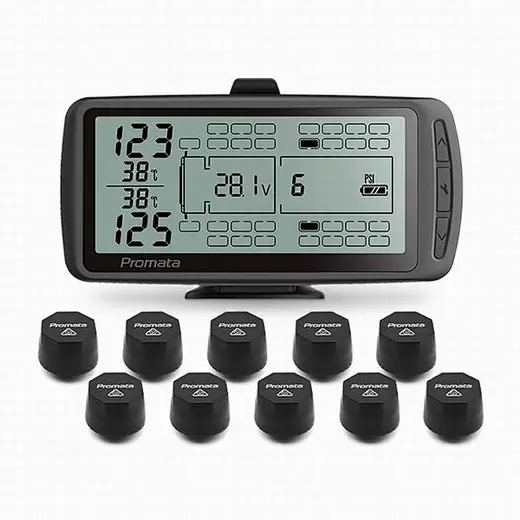

Brief Look at Display


Front axle view / Truck View / All Tyre View Selectable:

Optional Repeater/Booster:

• Repeater/booster is not included in the 6 wheel kit and needs to be purchased separately
• Repeater/booster is required if sensor to display distance is over 10m
• Repeater/booster increases sensor monitoring range to 30m

Packaging:

• QTY: 10 PCS/CTN
• G.W.：10.8KG
• Size：39 x 33.5 x 30CM
