Durable:Long lasting life.
Zero presence:Quiet running with low noise level
PTC protection:Overheat protection for safer operation
Overview
The DB801A Actuator is component part of a machine, is often used in vehicles as door-lock and trunk latches etc.
Capable of most vehicle types, DB801A have gone through million cycle endurance testing. Sealed with IPX3, the actuator ingress protection for dependable operation in environments exposed to dust and water,rain and dust will not stop the job. When the motor heats up beyond the upper limit, the overload protection function ensures operational safety.
Why Choose DB801A?
Premium Mabuchi Motor
Durable:Long lasting life.
Zero presence:Quiet running with low noise level
PTC Overload Protection
PTC protection:Overheat protection for safer operation
Key Features
- Mabuchi motor
- PTC overload protection
- Life cycle: >100,000 times
- Push/Pull force: >5.0 kgs
- Ultrasonic welding and fastened with rivets, water resistant
- 360° swivel head/fixed head available
- CE approval
- lnput voltage: 12 / 24V available
- Working temperature: -40°C~+80°C
Technical Specifications
Item | Specification |
Motor Brand | Mabuchi |
Certification | CE approval |
Push/Pull Force | >50N/5KGS(at 12V) |
Durability | >100,000 Times |
Head Type | 360°Swivel head/Fixed head |
Input Voltage | 12/24V |
Voltage | 9-16VDC |
Working temperature | -40°C~+80°C |
Stall current | < 7.0A 12VDC |
Mechanical stroke | 17mm+/-1mm |
IP Rate | IPX3 |
Protection | PTC overload protection |
Metal Parts | Selectable |

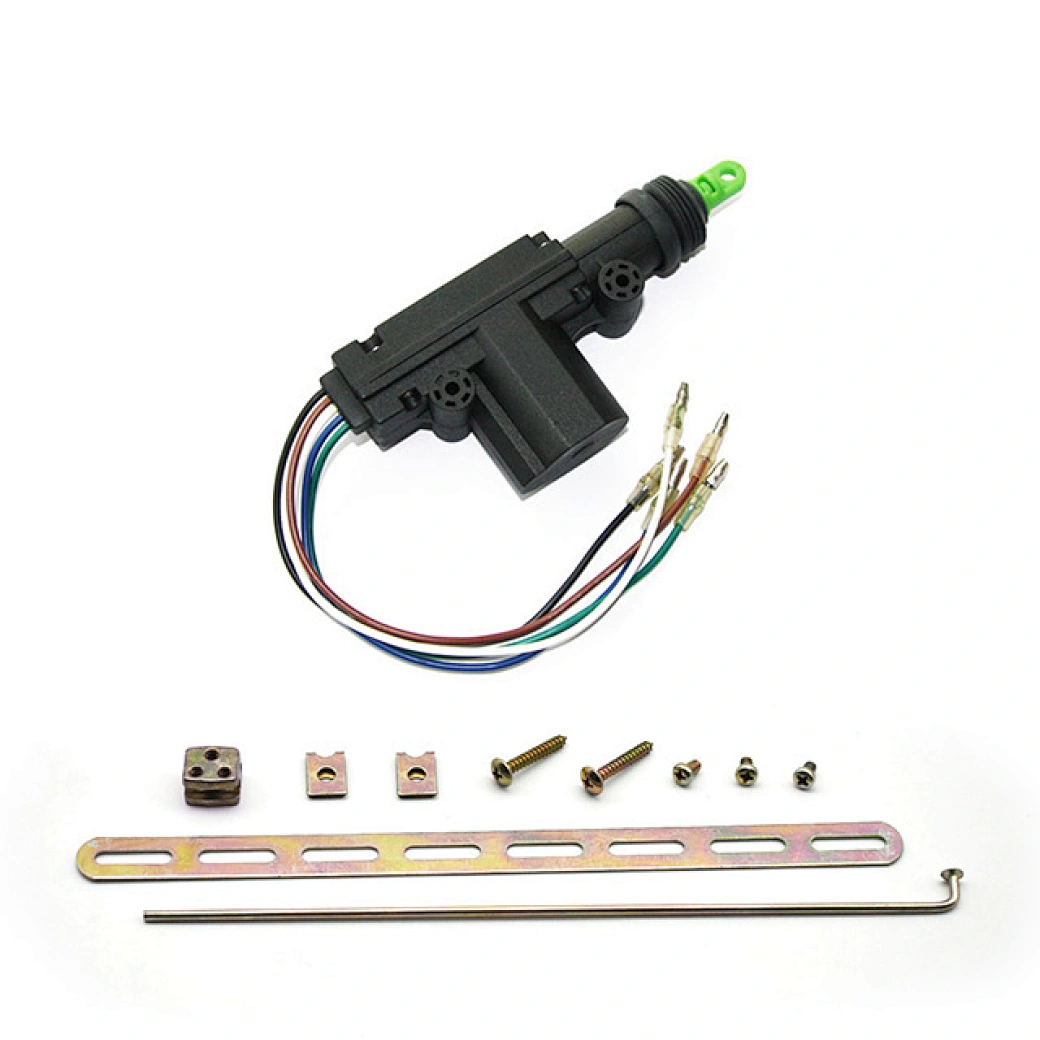

Brief look of DB801A
Packaging:
QTY: 100 PCS/CTN
G.W.：10.5KG
Size：49*33*18CM
