Overview

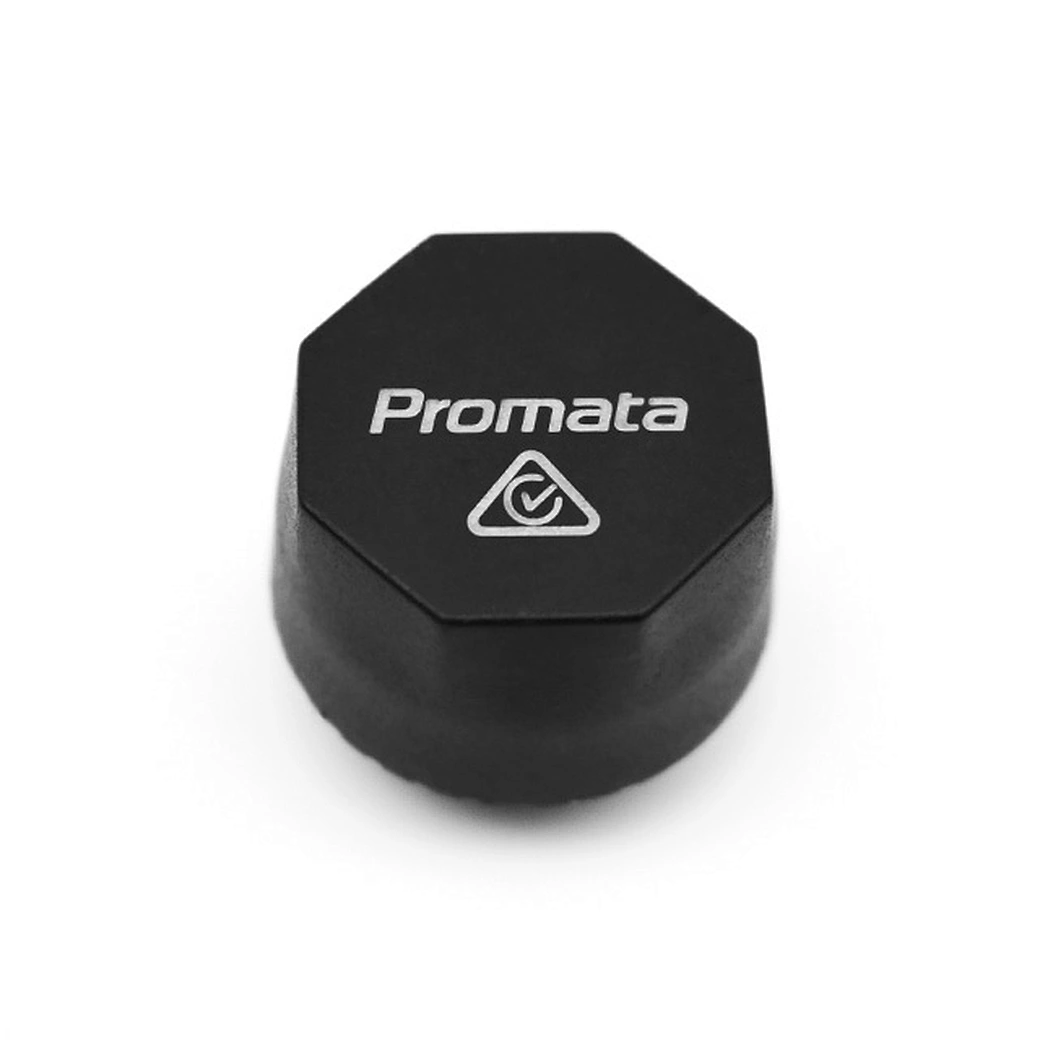

Promata TE05 is an external truck tyre sensor designed for easy installation without the need for wheel balancing. This truck sensor for TPMS pressure range 0~203Psi/0~14Bar is suitable for trucks and other heavy-duty applications. The external sensor features an IP67-rated design for water and dust resistance, making it reliable for daily use and demanding working conditions. This external tyre pressure sensor has a replaceable battery with a lifespan of up to 2 years. (Note: The sensor must be paired with a compatible display to work.).

Why choose Promata TPMS sensors?

• Tire Replacement Savings
• Fuel Efficiency Boost
• Maintenance Cost Elimination
• Rapid Scalability
• Downtime Reduction

Technical Specifications

Item	Specification
Item Name	TE05 External Sensor
Data output	RF
Frequency	433.92MHz
Accuracy	±3 PSI
Pressure Range	0–203 PSI / 0–14 Bar
Battery Lifetime	2 yeas (24/7 working mode)
Battery Model	CR2050
IP Level	IP67
Operating temperature	-40~+125℃
Certificate	CE RED / E-MARK



Key Features:

• Factory-Calibrated Accuracy: ±3 PSI industry-leading precision
• 2-Year Endurance Power: >2-year battery life, battery replaceable
• IP67 Design: Dustproof/waterproof – survives pressure washing, floods, and road chemicals.
• True DIY Installation: Tool-free mounting in <15 minutes
• Wide Pressure Range: 0–203 PSI / 0–14 Bar
• 1 sensor/set (order per wheel).



Installing External Sensors

1. Simply remove the existing valve cap and replace it with the TPMS sensor. Each sensor monitors pressure and temperature and doubles as the valve cap.

2. Please hand tighten the sensor 0.20-0.30 Newton Meters when screwing it onto the valve.

3. For installing the sensors in the inner wheels, please use an extended screw socket (27mm or 1 ⅙ inch, Drive: ⅜ square hole) like the one below:
