Overview

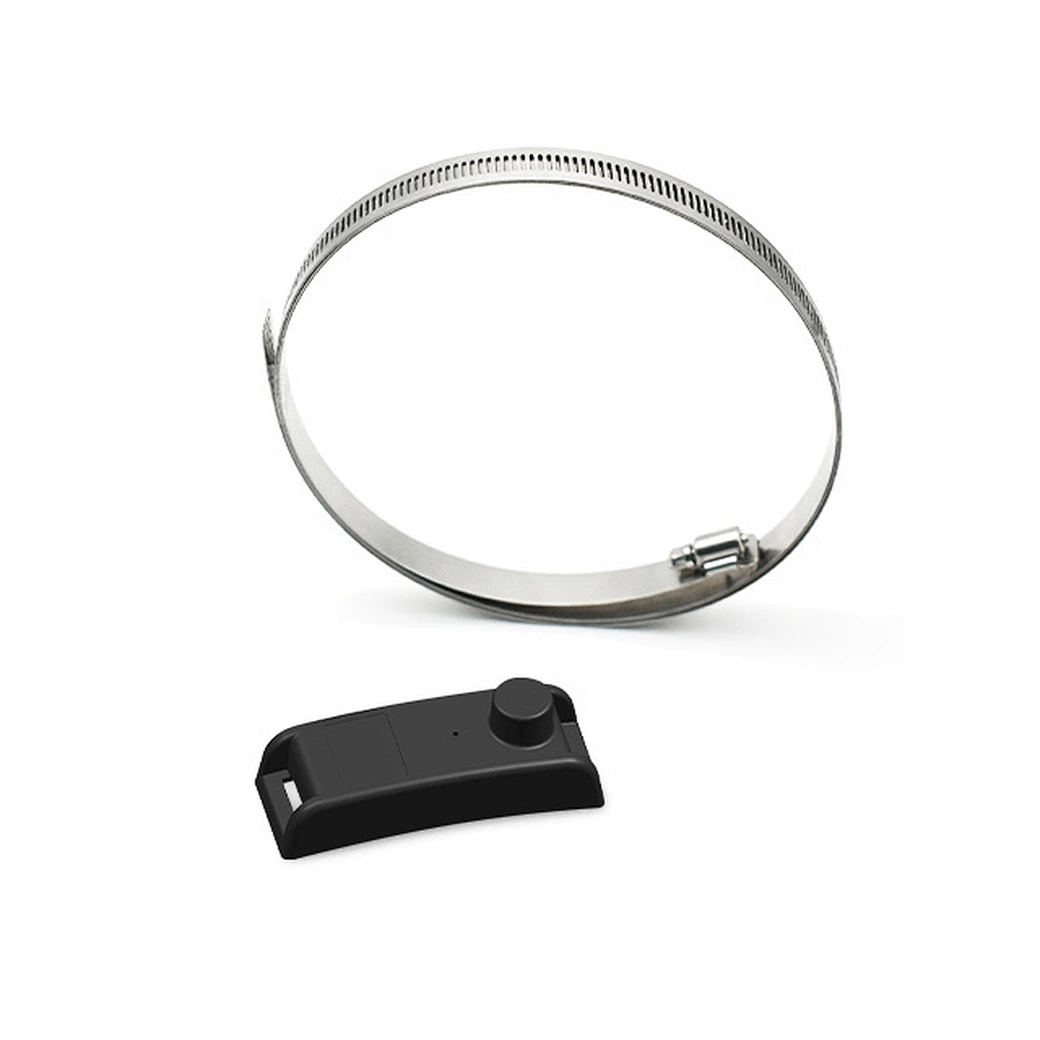

Promata TN05 is a Big rang internal truck TPMS sensor designed for heavy-duty vehicles. The internal truck sensor pressure range 0~203Psi/0~14Bar makes it suitable for trucks, buses, and other commercial vehicles. This truck internal tyre pressure sensor supports truck sensor detection pressure and temperature monitoring. With an IP67-rated design for water and dust resistance, it is built for demanding working conditions. The sensor must be paired with a compatible display to work.
Why choose Promata TPMS sensors?
- Tire Replacement Savings
- Fuel Efficiency Boost
- Maintenance Cost Elimination
- Rapid Scalability
- Downtime Reduction
Item | Specification |
Item Name | TN05 Internal Sensor |
Data output | RF |
Frequency | 433.92MHz |
Accuracy | ±3 PSI |
Pressure Range | 0–203 PSI / 0–14 Bar |
Battery Lifetime | 5 yeas (24/7 working mode) |
Battery Model | CR2050 |
IP Level | IP67 |
Operating temperature | -40~+125℃ |
Certificate | CE RED / E-MARK |
Key Features:
- Factory-Calibrated Accuracy: ±3 PSI industry-leading precision
- 5-Year Endurance Power: >5-year battery life
- IP67 Design: Dustproof/waterproof – survives pressure washing, floods, and road chemicals.
- True DIY Installation: Tool-free mounting in <15 minutes
- Wide Pressure Range: 0–203 PSI / 0–14 Bar
- 1 sensor/set (order per wheel).
Installing Internal Sensors
1. We recommend getting a professional tyre shop to install the internal sensors since specialized tools are required. Our internal sensor weighs 38g hence wheel balance may be needed depending on the truck.
4. Please temporarily attach the sensor to the tyre rim using a high-heat-resistant 3M sticker.
5. Then please secure the sensors with a metal clamp that spans across the tyre rim.
6. Please tighten the sensor clamp at 0.6 Newtown Meters when tightening onto the tyre rim.
