Overview

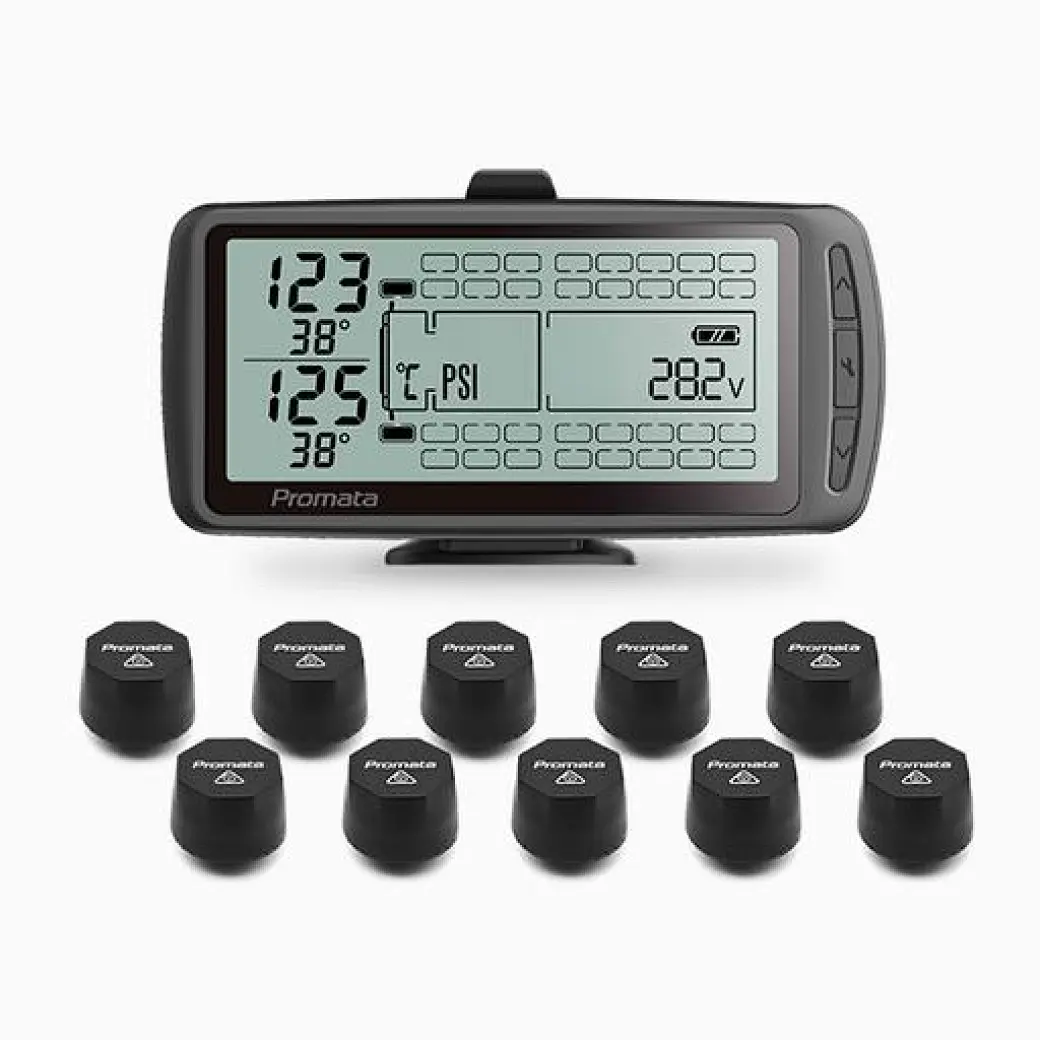

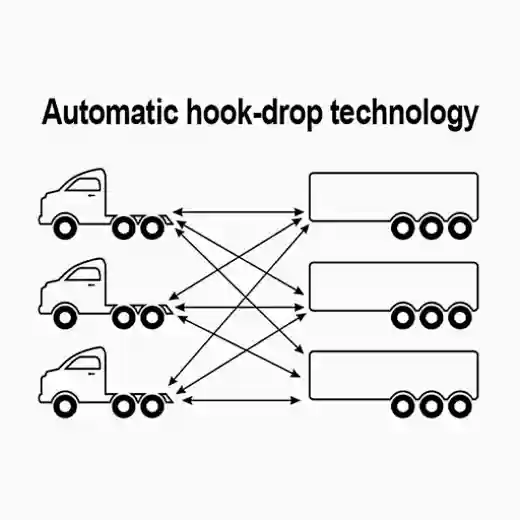

Promata Mata 7 truck external tpms with professional LCD display can monitor up to 34 tyres and is designed for heavy duty trucks and semi-trailers. This truck and trailer external TPMS can monitor truck + 1 trailer, and it has automatic hook-drop function. This means that the truck can pick up any trailer with the system installed and would be able to recognise and pick up real-time tyre pressures from that trailer.
Why Choose Mata7E?
Improve Fleet Safety
Receive instant alerts for:
• Low tire pressure
• High tire pressure
• Rapid air leakage
• High tire temperature
• Sensor malfunction
Early detection helps prevent tire blowouts, roadside breakdowns, and costly downtime.
Reduce Operating Costs
Maintaining proper tire pressure can help:
• Extend tire lifespan
• Improve fuel efficiency
• Reduce tire maintenance costs
Minimize unexpected vehicle downtime
Key Features:
- FreshData technology
- Data output available
- Monitor both tyre pressure and temperature
- Visual and audible warning for high/low pressure, leakage, high temperature
- Easy to add or delete sensor
- External sensor with replaceable battery
- 2-year external sensor battery lifetime in 24/7 working mode
- Pressure range: 0~203 Psi / 0~14 Bar
Technical Specifications
Item | Specification |
Maximum Tires | Up to 34 tires (e.g., a 14-wheel truck with a 20-wheel trailer) |
Pressure Range | 0 – 203 PSI (0 – 14 Bar) |
Monitoring Parameters | Pressure & Temperature |
Trailer Recognition | Automatic Hook-Drop Function |
Sensor Type | External Sensor |
Sensor Distance | 10m without booster,up to 30m with booster. |
Battery Type | CR2050 |
Sensor Battery Life | Up to 2 Years |
Alarm Functions | High/Low Pressure, Leakage, High Temperature |
Display Modes | Front Axle / Truck /All Tires |

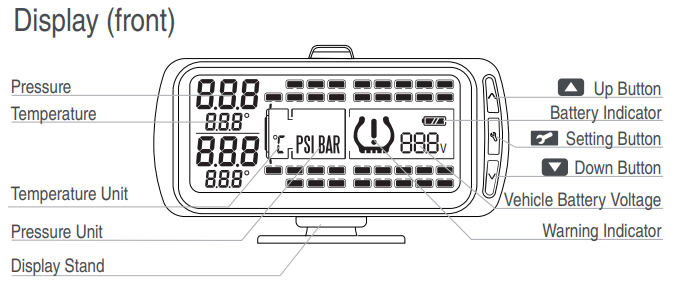

Brief Look at Display

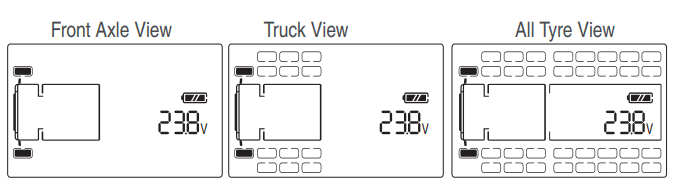

Front axle view / Truck View / All Tyre View Selectable:
Optional Repeater/Booster:
- Repeater/booster is not included in the 6 wheel kit and needs to be purchased separately
- Repeater/booster is required if sensor to display distance is over 10m
- Repeater/booster increases sensor monitoring range to 30m
Packaging:
- QTY: 10 PCS/CTN
- G.W.：10.8KG
- Size：39 x 33.5 x 30CM
